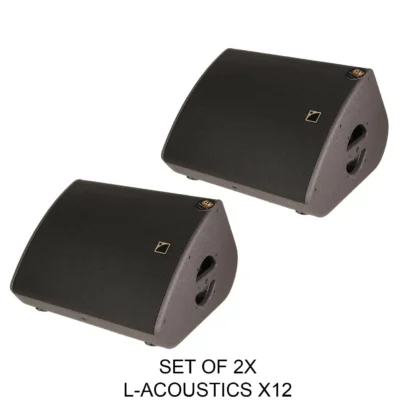

L'ACOUSTICS X-12 (10 Pcs)
Ten (10) Pieces available for rental
Description
Electroacoustic specs
2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)
|
59 Hz – 20 kHz ([X12])
|
Maximum SPL1
|
136 dB ([X12])
|
Nominal directivity (-6 dB)
|
Vertical: 90° symmetric
horizontal: 60° symmetric
|
Monitor angle
|
Without risers: 35°
with risers: 55°
|
Transducers
|
LF: 1 × 12″cone driver
HF: 1 × 3″diaphragm compression driver, neodymium
|
Acoustical load
|
Load bass-reflex, L-Vents, ellipsoidal waveguide
|
Nominal impedance
|
8 Ω
|
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
Physical specs
Connectors
|
IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
|
Rigging and handling
|
2 × handles
DIN580-compatible M8 threaded insert
4 M10 threaded inserts
1 × 35 mm pole socket
|
Weight (net)
|
20 kg / 44.1 lb
|
Cabinet
|
Premium grade Baltic beech and birch plywood
|
Front
|
Steel with anti-corrosion coating
acoustically neutral 3D fabric
|
Finish
|
Dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
|
IP
|
IP43
|
Brand
L'ACOUSTICS
