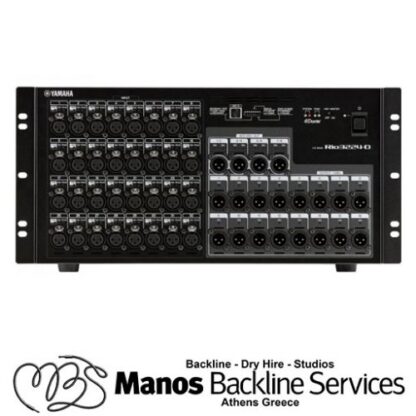

YAMAHA RIO 3224D. I/O Interface (3Pcs)

Description

The RIO3224-D is a rack-mountable I/O unit. The 5U size Rio3224-D provides 32 ins, 16 outs, and four AES/EBU outputs, and connects to the console via Dante network protocol for low-jitter, low-latency digital audio communication.

Sampling frequency rate Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0%

Signal delay: Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz

Total harmonic distortion: Less than 0.05% 20Hz-20kHz @ +4dBu into 600O, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz @ +4dBu into 600O, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min.

Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz

Dynamic range: 108dB typ., INPUT to OUTPUT, Input Gain = Min

Crosstalk: -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.

Power requirements: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz

Power consumption: 70W

Dimensions W: 480mm (18 7/8in) H: 144mm (5 3/4in) D: 361.5mm (14 1/4in)

Weight: 8.8kg (19.4lb)

Others: Temperature Range: Operating temperature range: 0 – 40?, Storage temperature range: -20 – 60?
