DiGiCo Quantum 338Pulse (2Pcs)
Two (2) Pieces available for rental
Description
OVERVIEW
|
Q338
|
Q338 Pulse
|
Input Channels
|
128
|
156
|
Aux/Group Busses
|
64
|
72
|
Matrix I/O
|
24×24
|
24×24
|
Mustard
|
36
|
48
|
Nodal Processing
|
64
|
72
|

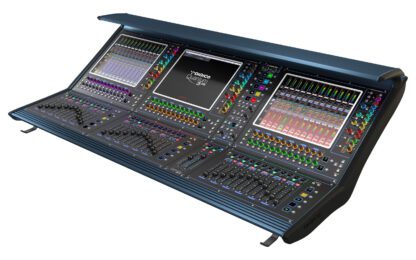

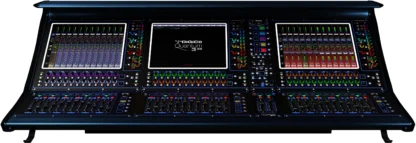

The DiGiCo Quantum 338 Pulse is a 156 channel mixing console with 38 physical faders and 3 x 17” LCD high-resolution touchscreens. Building on the Quantum 7, the Quantum 338 offers all of the Quantum features plus new design features and enhancements in a smaller format console.
KEY FEATURES
156 Input Channels with full processing
72 Aux/Sub-Group busses with full processing
24 x 24 Matrix with full processing
48 Insertable Mustard processing strips
72 Nodal processing instances
True Solo function
70 TFT LCD displays
Ultimate Stadius 32-bit local I/O
Assignable channel layout
User programmable macros
Capable of redundantly mirroring with another Quantum 3 console
Redundant PSUs as standard
Snapshots for seamlessly changing many parameters at once
2 DMI Slots to expand the I/O as desired
Integrated UB MADI
Offline software
iPad control
WORKSURFACE
38 x 100mm touch-sensitive, motorised faders
3 x 17” LCD high-brightness, high-resolution touchscreens
70 x Full Colour TFT LCD Displays
2 x 1⁄4” Headphone sockets
2 x 3.5mm Headphone sockets
1 x USB 2.0 slot
1 x USB 2.0 5V power only slot (for charging)
Keyboard Light Bar
Quantum Hood
Integrated Light Bar
Floating Quantum Chassis
REAR
2 x Redundant PSUs
8 x XLR Mic/Line Inputs (32-Bit Stadius ADCs)
8 x XLR Line Outputs (32-Bit Stadius DACs)
4 x XLR AES/EBU Inputs (8 x channels)
4 x XLR AES/EBU Outputs (8 x channels)
6 x MADI BNC I/O @ 48k, 3 interfaces at 96k
2 x MultiMode Optocore Interface (Optional)
1 x Waves port (Optional)
2 x DMI Slots (up to 64 I/O per slot)
1 x UB MADI (USB Type B Audio I/O interface for recording and playback of up to 48 channels)
4 x Ethernet ports (switched together)
3 x USB 2.0 slots
1 x GPI DSub37 (16 inputs)
1 x GPO DSub37 (16 outputs)
1 x MIDI In/Thru/Out (5 pin DIN)
1 x Word Clock I/O BNC
1 x DisplayPort Output
1 x AES/EBU Sync I/O
1 x RS422 port (9 pin)
1 x Quantum Lighting
OPTIONS
Single or Dual Loop Optocore (HMA, OpticalCon or ST)
Upgrade to SingleMode Optocore
Waves Soundgrid Interface
Theatre Software
Flightcase
Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC / Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C / ME / Mic / Waves
Brand
DiGiCo
