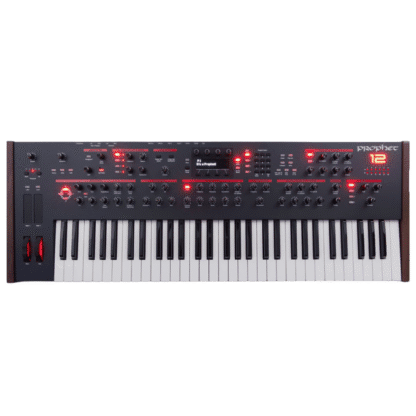

SEQUENTIAL PROPHET 12 (1 Pc)

One (1) Piece available for rental

Code: KEY.DSI.010.SNT Category:

Description

Prophet 12 Specifications

Oscillators

  • Five DSP-based oscillators per voice (including one sine wave sub oscillator)

  • Four classic wave shapes (saw, square, triangle, sine) per oscillator

  • Twelve selectable complex shapes per oscillator

  • Three noise types per oscillator: white, pink, violet

  • Analog VCAs

  • Shape modulation

  • Oscillator cross modulation: frequency modulation (FM) and amplitude modulation (AM)

  • DX-style linear FM

  • Hard sync on each of the four oscillators

Character Effects

  • Five high-quality digital effects. Thicken the signal and add harmonics or completely destroy the signal pre-filter.

  • Girth and Air are high and low shelf equalizers with harmonic excitement. Useful for thickening and/or adding air to the signal.

  • Hack and Decimate are sample and bit rate reduction algorithms which can add subtle grit or completely destroy the signal. It’s harsh yet musical!

  • Drive is a soft saturator for adding soft distortion and harmonic content to the signal

Filters

  • Famed Curtis 2- or 4-pole resonant analog low-pass filter (self oscillates in 4-pole mode) per voice

  • 2-pole resonant analog high-pass filter per voice

Feedback and Delay

  • Tuned feedback

  • Four-tap syncable multi delay with feedback and amount per delay per voice

Envelopes

  • Four Delay + ADSR envelopes (LPF, VCA , and two Auxiliary envelopes)

  • Auxiliary envelopes 3 and 4 freely assignable to multiple modulation destinations

  • All envelopes can repeat/loop

LFOs

  • Four syncable LFO’s with phase offset and slew per LFO

Modulation

  • 16 x 2 modulation matrix with 26 mod sources and 100 mod destinations

  • Modulation assignment buttons enable quick and easy modulation routing

Arpeggiator

  • Sophisticated programmable arpeggiator with up, down, up+down, random, assign modes

  • Arpeggios are editable and saveable

  • Re-latching arpeggiator

  • MIDI note output

Programmable Distortion

  • Independent programmable stereo analog distortion per layer.

Controls

  • More than 50 knobs and 50 buttons enable deep and comprehensive editing with little to no menu diving.

  • Backlit pitch and mod wheels are easily visible in low light situations and have a smooth yet precise feel and response.

  • Independently adjustable upper and lower pitch wheel range.

  • Two assignable position- and pressure-sensitive latchable touch sliders for enhanced interactivity and control.

  • Full-sized, 5-Octave, semi-weighted keyboard with velocity and channel aftertouch

Memory

  • 396 user and 396 factory programs

  • Direct program access using numeric keypad and dedicated User, Factory, and Bank buttons

  • Playlist mode for generating easily accessible setlists of your favorite programs. Create four play lists with up to forty programs each!

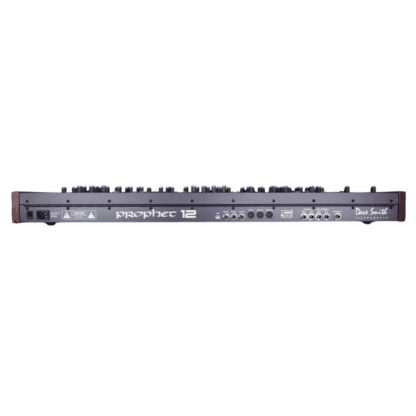

In/Out

  • 1 MIDI In, 1 MIDI out, and 1 MIDI Thru port

  • USB port for bidirectional MIDI communication

  • 1 Sustain/footswitch input

  • 2 expression pedal inputs

  • Main stereo output (2 x 1/4″ phone jack)

  • Layer B stereo output (2 x 1/4″ phone jack)

  • Headphone out (stereo 1/4″ phone jack)

Power

  • 1 universal IEC AC power inlet for internal power supply

  • Operates worldwide on voltages between 100-240v, 50-60Hz, 30 watts maximum power consumption

Physical Specs

  • Walnut wood end panels and trim

  • 38.4″ L x 12.8″ W x 4.15″ H (97.5 cm x 32.5 cm x 10.5 cm)

  • 26 lbs. (11.8 kg)

Brand

SEQUENTIAL
