BSS DPR-504

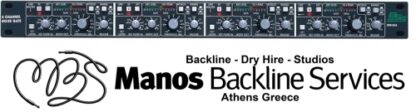

The DPR-504 is a 4-channel noise gate.
The Range switch selects between 7OdB and 2OdB gating depth to provide alternative release profiles.

Code: 6be0944022c1 Category:

Description

The DPR-504 is a 4-channel noise gate.

Each channel features:

    • A parametric key filter with key filter listening.
    • Simultaneous key level and threshold metering with average and peak metering.
    • A gate status LED.
    • A RELEASE/HOLD control (hold tracks proportionally with release times).
    • Attack switchable auto/fast (auto tracks signal dynamics for optimum setting).
    • Link (links two channels together).
    • Key source allows external triggers.

The Range switch selects between 7OdB and 2OdB gating depth to provide alternative release profiles.

The unit features electronically balanced inputs and outputs.

SPECIFICATIONS

Input Section


Impedance


Balanced 12kOhm differential








Max Input Level


+20dBv








CMRR


Better than 50dB, 20Hz to 20kHz








Connector


XLR331 or equivalent

Output Section


Impedance


Balanced and floating to drive 600 Ohm loads








Max Output Level


+20dBv into 600 Ohm load








Connector


XLR332 or equivalent








Range


Switchable attenuation between 70dB and 20dB The latter may be user defined
by internal links

System Performance


Frequency Response


+ 1dB, 20Hz to 20kHz Ultrasonic low pass filter 3dB at 32kHz








Noise


Measured to CCIR 4682 Zero attenuation : less than 86dBv








Maximum attenuation:


<-90dBv








Distortion


THD less than 005%, 20Hz to 20kHz








SMPTE IM


< 002%








Crosstalk


> 90dB 20Hz to 20kHz

Operating Controls


Key Filter Frequency


Variable between 30Hz and 15kHz centre








Key Filter Width


Variable between 05 and 10 octaves








Key Source


Internal or External, via rear panel ¼"TRS jack








Threshold


Variable between +20dBv and 50dBv








Attack


Audio attack switchable FAST (20µs) or AUTO (40µs 5ms, programme dependant)








Release


Combined Hold/Release function is variable 1ms to 3 sec Hold period tracks
proportionally with Release








Link


Stereo linkable in paris 1/2 and 3/4 Channels 1 and 3 become masters

Metering


Key Side Chain


Simultaneous average and peak reading 12 point LED display showing 20dB
range either side of threshold








Gate Open Marker


Single LED shows exact gate status and mimics response profile








Ext Key Socket


3 pole, ¼" RTS jack socket used for EXT keyin or key insert functions

General


Size


482mm x 44mm x 282mm (19" x 1.75" x 11").








Weight


5kg (11lbs) gross shipping.








Electricity Supply


Switched 120/240V +10% 20% 50/60Hz.



Brand

BSS
