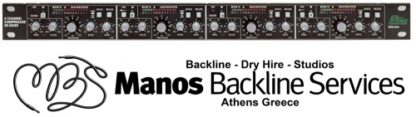

Description
A 4 channel compressor with high frequency de-essing.
Each channel includes:
- Threshold control
- Below threshold metering
- Ratio control
- A gain reduction meter
- A clip LED
- Gain control
- Linking
- High frequency de-esser.
Attack and release time constants are automatically and continually regulated by dynamic and harmonic content of program material.
The unit features electronically balanced inputs and outputs.
SPECIFICATIONS
Input Section
|
Impedance |
Balanced 12k ohm differential. |
|
|
|
|
Max. Input Level |
+ 20dBv. |
|
|
|
|
CMRR |
better than 50dB, 20Hz to 20Khz. |
|
|
|
|
Connector |
XLR331 or equivalent. |
Output Section
|
Impedance |
Balanced and floating to drive 600 ohm loads. |
|
|
|
|
Max. Output Level |
+20dBv into 600 Ohm load. |
|
|
|
|
Connector |
XLR332 or equivalent. |
System Performance
|
Frequency Response |
+ 1DB, 20Khz, ultrasonic low pass filter 3db at |
|
|
|
|
Noise |
Measured to CCIR 4682, <-86dBv. |
|
|
|
|
Distortion |
THD <0.05%, 20Hz to 20kHz. |
|
|
|
|
SMPTE IM |
<0.02%. |
|
|
|
|
Crosstalk |
<90dB, 20Hz to 20kHz. |
Operating Controls
|
De-ess Frequency |
Variable from 10kHz to 10kHz, dynamic HF shelf |
|
De-ess Threshold |
Variable from +20dBv to 30dBv, independent of |
|
|
|
|
Threshold |
Variable between +20dBv and 30dBv. |
|
|
|
|
Ratio |
Variable from 1:1 to infinity:1 (LIMIT) progressive |
|
|
|
|
Attack |
Program dependent, auto time constant. Nominal |
|
|
|
|
Release |
Program dependant, 2 part auto time constant. Nominal |
|
|
|
|
Gain |
Variable from 20dB to +20dB. |
|
|
|
|
Link |
Stereo linkable in pairs 1/2 and 3/4 Channels 1 and 3 |
Metering
|
Gain Reducton |
8 point LED display showing progressive gain |
|
|
|
|
Below Threshold |
5 points LED display showing sidechain level below |
|
|
|
|
Clip |
Single LED showing onset of channel clip. |
General
|
Size |
482mm x 44mm x 282mm (19" x 1.75" x |
|
|
|
|
Weight |
5kg (11lbs) gross shipping. |
|
|
|
|
Electricity Supply |
Switched 120/240V +10% 20% 50/60Hz. |
