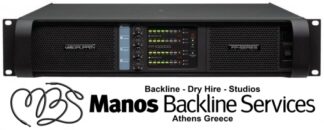

d&b audiotechnik D-40-NL4 (4 Pcs)

Description

Product description

This four channel Class D mobile amplifier provides the power density required for high-efficiency d&b systems including the KSL System, V-Series, Y-Series and T-Series.

The D40 incorporates comprehensive loudspeaker management, switchable filtering functions as well as user definable equalization and delay capabilities.

Onboard enhanced energy saving features, power efficiency and Automatic Wake up enable you to save on resources and meet environmental responsibility requirements.

The D40 incorporates up to 16 input channels with eight Milan audio inputs, four analogue inputs, and four AES3 channels.

The D40 utilizes a switch mode power supply with automatic mains range selection and active Power Factor Correction (PFC) to produce a clean current draw and ensure stable and efficient performance under adverse mains conditions.

Access to the d&b Remote network is via Ethernet using the Open Control Architecture protocol (AES70 / OCA). The D40 is controlled using the integrated web interface, which enables access via a browser, or using the d&b R1 Remote control software.

For applicable d&b loudspeakers, d&b LoadMatch enables the D40 amplifier to preserve tonal balance when cable lengths of up to 70 m (230 ft) are used

Digital Signal Processing

Equalizer

2 x 16-band PEQ/notch/shelving/asymmetric

Latency analog and digital inputs

0.3 ms

Delay setting

0.3 ms – 10 s

Configurations

current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)

Function switches

d&b loudspeaker specific circuits

Frequency generator

Pink noise or Sine wave 10 Hz – 20 kHz

Controls and indicators

Power

Mains power switch

SCROLL/EDIT

Digital rotary encoder

Display

Colour TFT touchscreen, 4.35″/480 x 272 pixel

Connectors

Sampling frequency Digital AES/EBU

44.1, 48, 96, 192 kHz

INPUT ANALOG (A1 – A4)

3 pin XLR female

ANALOG LINK (A1 – A4)

3 pin XLR male

INPUT DIGITAL (D1/2, D3/4)

3 pin XLR female AES3

INPUT Network Audio (Milan) (M1-M8)

etherCON^® built-in 5-port AVB Ethernet switch 100/1000 Mbit

DIGITAL LINK (Output)

3 pin XLR male

Speaker outputs A/B/C/D

NL4

Mix TOP/SUB / 2-Way Active output A/B and C/D

NL4

4 Channel output

NL8

Ethernet

2 x RJ 45, 1 Gbit/100 Mbit Ethernet

Mains connector

powerCON^® TRUE1 TOP

Data (linear setting with subsonic filter)

Maximum output power per channel (THD+N < 0.5%, all channels driven)
CF = 12 dB at 4 / 8 ohms

4 x 2400/2000 W

Power supply

Type

Autosensing switch mode power supply with active Power Factor Correction (PFC)

Rated mains voltage

100 – 127 / 208 – 240 V, 50 – 60 Hz

Dimensions / weight

Dimensions (h x w x d)

2 RU x 19″ x 512 mm/20.2″
