BLACKMAGIC DESIGN VIDEO ASSIST 5″ 3G (1 Pc)

One (1) Piece available for rental

Code: VID.BMD.020.MON Category:

Description

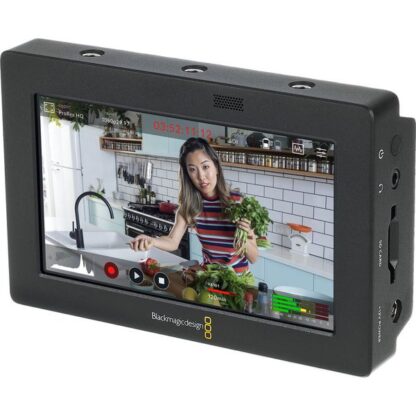

Portable Video Monitor

  • With SD card recorder, scope display and viewfinder in one

  • With higher quality recording codecs on board

  • Adds a larger screen to any SDI or HDMI camera

  • Four integrated scopes, improved focus assist, a tally indicator and 3D LUTs

  • Supports formats up to 1080p/60

  • Built-in mono speaker

  • Screen dimensions: 5 inches with 1920 x 1200 pixels

  • Screen brightness: 300 nits

  • SDI audio inputs: 16 channels embedded in SDI

  • SDI audio outputs: 16 channels embedded in SDI

  • HDMI audio inputs: 8 channels embedded in HDMI

  • HDMI audio outputs: 8 channels embedded in HDMI

  • SD interface: 1x SD slots for UHS-I cards

  • Memory type: SD cards of the types SDXC UHS-I and SDHC UHS-I

  • Supports the following SD cards: DS, HS, SDR12, SDR25, DDR50 and SDR104

  • Computer interface: 1 USB-C port for initial setup

  • Software updates and software control via Video Assist Utility

  • Blackmagic Video Assist ” 3G.

  • SDI video standards: SD video standards: 525i/59.94 NTSC

  • 625i/50 PAL

  • HD video standards: 720p/50, 720p/59.94, 720p/60 1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080PsF/29.97, 1080PsF/30 1080i/50, 1080i/59.94, 1080i/60

  • SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

  • SDI metadata support: HD RP188

  • Audio sampling frequency: Standard television sampling frequency of 48 kHz and 24 bit

  • Video sampling frequency: 4:2:2 YUV

  • Colour accuracy: 10 bit

  • Colour space: REC 601, REC 709

  • Multi rate support: SDI and HDMI switch between 270 Mbps, 1.5 Gbps and 3 Gbps

  • SD video standards: 525i/59.94 NTSC, 625i/50 PAL

  • HD video standards: 720p/50, 720p/59.94, 720p/60 1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60 1080i/50, 1080i/59.94, 1080i/60

  • HDMI colour accuracy: 10 bit

  • Supported codecs: ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422 Proxy / DNxHD 220x / DNxHD 145 / DNxHD 45 / DNxHD 220x MXF / DNxHD 145 MXF / DNxHD 45 MXF

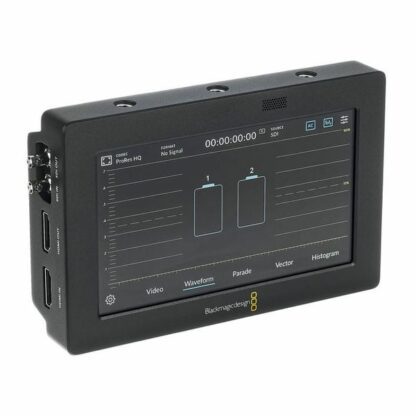

  • Scopes: waveform, RGB parade, vectorscope, histogram

  • Display modes: scopes with picture-in-picture or as faded-in overlay with adjustable opacity

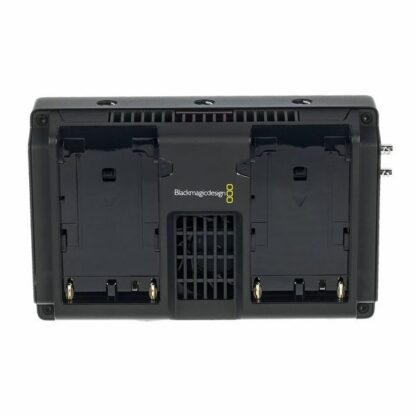

  • Power supply via mains adapter or with Sony-compatible NP-F rechargeable batteries (batteries not included)

  • Dimensions (W x H x D): 148 x 90 x 37 mm

  • Weight: 0.410 kg

Brand

BLACKMAGIC DESIGN
