Description

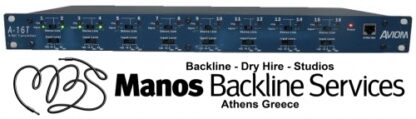

The A-16T provides 16 balanced line-level inputs to a Pro16® system.
Features
-
Sixteen balanced audio inputs (1/4-in TRS connectors)
-
Sixteen balanced Thru connectors (TRS)
-
Stereo Link switches for each channel pair
-
Four-position gain switches (+22, +4, 0, -10dB)
-
Signal present and clip LEDs per channel
Details
The A-16T provides 16 balanced line-level inputs into a Pro16 system. Audio is converted to digital and transmitted via A-Net, up to 500’/150m over Cat-5e. A dedicated audio thru is available for each input channel, allowing the
A-16T to be seamlessly inserted into an existing audio signal path.
Placed at a front-of-house or monitor console, the A-16T can be used as a head-end for a Pro16 Monitor Mixing System. Audio from the console—any combination of channel inserts, direct outs, submixes, auxes, or groups—is connected to the input channels on the A-16T .
The flexibility and simplicity of the Pro16 Series allows complex audio distribution systems and snakes to be created quickly and cost-effectively.
Specifications
Audio Inputs |
16, balanced line-level, |
Inputs |
Tip: Audio +; Ring: Audio -; Sleeve: Ground |
Analog to Digital Conversion |
48kHz sample rate, 24 bit |
Frequency Response |
4Hz-22kHz |
A- Net Output |
one Category 5 (RJ45 connector) |
A-Net Expansion |
one Category 5 (RJ45 connector) |
Gain Settings |
Four-position switch, -10dBv, 0dBu, +4dBu, and+22dBu |
Channel LED Indicators |
Signal Present and Clip, per channel |
Line Inputs |
Impedance: 48k ohms |
Metering |
LEDs; green: Signal Present, red: Clip; perchannel |
Stereo Operation |
Stereo Link, per channel pair;Two-positionswitch (Normal, Link) |
Maximum Input Level |
+22dBu |
Input Impedance |
17.8k ohm |
Freq. Response |
4Hz-22kHz +0.2dB/-3dB |
THD +N |
< 0.003% |
Crosstalk |
-90dB |
Bit Error Rate (BER) |
10(-12) |
Signal to Noise (unweighted) |
90dB typical, A/D to D/AMeasured from AN-16/i to AN-16/o Output Module |
Digital Outputs |
A-Net: 1; A-Net Expansion: 1; RJ45 connector |
A-Net Pro16 |
A-Net Expansion combines two A-Net streams (32 channels of audio) onto oneCat-5e cable;use unshielded Cat-5e UTP (or better) cable |
Latency |
<0.880 msec (measured from analog input to analog output) |
Power Supply |
External, DC, universal switching type |
Input Voltage |
100-240 volts, 50/60Hz, 30VA |
Output Voltage |
18-24 VDC, 0.5 amp |
Plug Size |
2 mm |
Power |
18-24 VDC, 500mA |
Dimensions |
19″ (482.6 mm) wide x 5.75″ (146 mm) deep;1U high |
Weight |
6.8 lbs. (3.08 kg) |
Options |
AN-16SBR System Bridge; used to combine up to four A-Net streams fortransmission over one Cat-5e cable |
